Prevent costly equipment failures and unplanned downtime by inspecting your fluid ends today. Look for cracks, corrosion, leaks, excessive wear, and other signs of damage that could compromise performance or safety. Early detection allows timely maintenance, supports reliable operation, extends equipment life, and helps protect your productivity and investment.
A fluid end works under high pressure and repeated load. Small signs of wear can affect pump output, create leaks, or lead to unplanned maintenance. I inspect fluid ends as part of a planned service routine, not only after a failure appears.
The inspection should match the pump manual, fluid type, pressure rating, and site safety rules. A trained technician should handle pressure equipment, especially when the pump has recently operated.
Step 1: Make the pump safe
Stop the pump and isolate all energy sources. Close the required valves, drain the pressure, and confirm that the fluid end has no trapped pressure.
Wear suitable gloves, eye protection, and protective clothing. Mud, chemicals, and hot fluid can remain inside the chamber after shutdown.
I never remove a plug, valve cover, or discharge connection until a pressure gauge shows zero and the line has been checked. A silent pump is not always a safe pump.
Step 2: Clean the outside
Wash or wipe the fluid end before checking its condition. Dirt can hide cracks, washout marks, loose fasteners, and small leaks.
Pay close attention to:
Oil or drilling fluid around a connection may point to a damaged seal, loose fastener, or surface defect. I mark the location and check it again after cleaning.
Step 3: Check for cracks and washout
Look for lines, pits, grooves, and areas where the metal surface appears thinner than normal. Washout can develop when fluid passes through a damaged valve, worn seat, or poor seal.
A visual check can show early warning signs, but it cannot confirm the full condition of the pressure chamber. If a crack or possible washout appears, the part should be assessed with a suitable inspection method by a qualified person.
Do not grind, weld, or drill a pressure-retaining part without approval from the equipment maker or an engineer who understands the design.
Step 4: Inspect valves and seats
Remove and inspect the valve parts according to the service manual. Check the valve body, spring, guide, seat, and sealing areas.
Look for:
A valve seat may look acceptable from one angle and still have a worn sealing surface. I clean the part, rotate it under good light, and compare it with the service limits in the manual.
Metal debris inside the fluid end can point to a wider problem. Replacing one valve without finding the source may lead to repeated wear.
Step 5: Check liners and pistons
Inspect the liner bore for scoring, grooves, cracks, corrosion, and an uneven surface. Run a clean cloth over the bore only when the equipment is safe and the surface is cool.
Check the piston for cuts, swelling, hardening, or signs of fluid passing behind the seal. The piston rod should be straight and free from deep marks.
A damaged liner can wear the piston faster. A damaged piston can allow fluid into areas that should remain dry. I compare the measured diameter and wear pattern with the pump maker’s limits instead of relying on appearance alone.
Step 6: Examine seals, plugs, and fasteners
Replace seals that are cut, flattened, hardened, or exposed to the wrong fluid. Check plug threads and sealing faces for damage.
Use the specified torque and tightening sequence. Guessing the torque can cause leaks, distortion, or damaged threads. A calibrated torque tool helps keep the service record reliable.
Fasteners should match the equipment specification. A similar-looking bolt may not have the same strength or size.
Step 7: Review operating signs
Inspection results become more useful when they are compared with pump performance. I review:
For example, a drilling crew may notice lower flow and stronger pulsation during a shift. An inspection may show a damaged valve spring and washout near the seat. Replacing the valve parts may solve the symptom, but the team should also check fluid quality, solids content, pressure settings, and valve assembly.
A record with photos, measurements, operating hours, and replaced parts makes the next inspection easier. It also helps the team spot repeated wear instead of treating each repair as a separate event.
Step 8: Reassemble and test
Clean all mating surfaces and install approved parts in the correct position. Check that valves, springs, plugs, liners, and seals match the pump model.
After assembly, perform a controlled test at the pressure and speed allowed by the service procedure. Watch for leaks, abnormal sound, vibration, and unstable pressure.
Stop the test if a new leak or unusual movement appears. The fluid end should not return to normal service until the cause has been checked.
A useful fluid end inspection focuses on safety, wear patterns, measurements, and service history. I do not judge a pressure component by appearance alone. A clean work area, a clear checklist, and accurate records can help detect problems before they affect pump performance or site work.
A small leak can leave a larger problem behind.
I have seen water marks start as a pale patch on a ceiling, a soft spot under a sink, or a quiet drip near a washing machine. The sound may seem minor, yet hidden water can reach wood, insulation, flooring, and electrical areas. By the time the damage becomes easy to see, the repair may involve more than a loose fitting.
Early checks give me a better chance to find the source before the problem spreads.
I start with the signs that people often miss:
A visible stain does not always mark the exact leak location. Water can travel along pipes, framing, and ceiling materials before it appears. I do not rely on the stain alone. I check the nearby supply lines, valves, drains, fixtures, and access points.
My leak check follows a simple process.
1. Review the visible signs
I ask when the stain, smell, or sound first appeared. A mark that grows after rain may point to a roof or exterior issue. A mark that appears after a shower may relate to a bathroom supply line, drain, or seal. The timing helps narrow the search.
2. Check fixtures and connections
Loose connections can develop under kitchen sinks, bathroom basins, toilets, water heaters, dishwashers, and washing machines. I inspect hoses, shutoff valves, traps, and fittings for moisture or mineral buildup.
A dry surface does not always mean the line is safe. Some leaks occur only when water flows or when a fixture is under pressure.
3. Test for hidden water loss
I can compare the water meter reading before and after a period when no taps, toilets, or appliances are running. A moving meter may suggest a leak in the plumbing system. This check does not identify every source, but it can show when a closer inspection is needed.
4. Protect the area
If water is near electrical outlets, appliances, or light fittings, I treat the area with care. I turn off the nearby water supply when it is safe to do so and keep people away from wet electrical equipment. A qualified electrician may be needed when water has reached wiring or electrical components.
5. Repair the cause, not only the mark
Painting over a stain can hide the sign without stopping the leak. I focus on the damaged fitting, pipe, seal, valve, or connection. The wet material may also need time to dry before cosmetic repairs begin.
A homeowner in Manchester once noticed a faint brown mark below a bathroom. The mark was small, so the family placed a container under the area and watched it for several days. The container stayed dry. During an inspection, the leak was traced to a slow connection behind the bath panel. Water was running along the floor structure rather than dripping straight down. The visible mark showed only where the water came out, not where it started.
This is why early attention matters. The first sign may be quiet. A short check can help prevent wider damage to plaster, flooring, cabinets, and stored belongings.
I also suggest checking flexible hoses and exposed connections as part of normal home care. Look for cracks, rust, swelling, or white mineral marks. Keep access panels clear so a shutoff valve can be reached without moving heavy items. Know where the main water shutoff is located. These small habits make a response simpler when a leak appears.
Do not use sealant as a substitute for a proper repair when a pipe or fitting continues to leak. Do not ignore a musty smell because no water is visible. Hidden moisture can remain behind walls, under floors, or inside cabinets.
When I inspect a leak, I explain what I can see, where the water may be coming from, and which repair options fit the condition of the system. If the source is uncertain, I recommend further testing rather than making a guess.
Finding a leak early does not remove every repair cost, and no inspection can promise that hidden damage is absent. It can give you clearer information and help limit avoidable spread. The practical approach is simple: notice the signs, check the likely sources, protect the area, and repair the cause before a small leak becomes a larger home problem.
Small signs of damage can be easy to ignore. A damp patch near a window, a slow drain, a loose roof tile, or a strange sound from an appliance may seem minor at first. I used to think repairs could wait until the problem became easier to see. In many homes and workplaces, that choice leads to higher repair bills.
The good news is that damage often leaves clues before it spreads. A simple inspection routine, clear records, and timely maintenance can help protect the building, equipment, and budget.
Water is one of the most common sources of property damage. I check the places where water enters, collects, or moves through the building:
A small stain on a ceiling may come from a loose fitting above it. Paint can hide the mark for a while, but it will not stop the leak. If I notice peeling paint, a musty smell, soft flooring, or a change in wall texture, I look for the source instead of covering the surface.
One homeowner I worked with had a faint brown mark near a hallway light. The mark looked old, so the area was painted. A few weeks later, the stain returned and part of the ceiling became soft. The repair involved both the leak and the damaged ceiling board. A basic inspection at the first sign could have reduced the work.
Damage does not always look serious. Sometimes I notice it through sound or function.
A heating unit that cycles more often may need attention. A washing machine that shakes during normal use may have an alignment or load problem. A door that no longer closes smoothly can point to movement in the frame or a worn hinge. A circuit breaker that trips repeatedly should not be treated as a small inconvenience.
I avoid forcing equipment to continue working when its behavior changes. Turning off the affected appliance and checking the user manual is a safer starting point. Electrical work, gas systems, structural repairs, and major plumbing issues should be handled by a qualified local professional.
A written record helps me notice patterns that are easy to miss. I note:
Photos are useful because damage can change slowly. A picture of a small crack today gives me a clear reference for a later inspection. I also keep receipts and service notes in one folder. This makes it easier to explain the issue to a contractor and check whether a repair is still covered by a service agreement.
Not every problem needs immediate professional service, but every problem deserves a clear decision.
Replacing a worn seal, clearing a blocked gutter, tightening a loose handle, or cleaning a ventilation filter may be suitable for basic maintenance. I only handle tasks that match my skills and the manufacturer’s guidance. I do not open electrical panels, remove structural materials, or repair gas equipment without proper training.
A small repair can also reveal a larger issue. If a wall keeps getting damp after a seal is replaced, the seal may not be the true source. Repeating the same surface repair without checking behind it can waste money and delay the right fix.
Heavy rain, strong wind, freezing temperatures, and heat can place extra pressure on a property. Before seasonal weather arrives, I check gutters, roof drainage, exterior seals, exposed pipes, and outdoor furniture. I store loose items safely and make sure water can move away from the building.
After severe weather, I inspect the property from the ground. I look for missing materials, fallen branches, standing water, broken windows, and signs of moisture. I avoid climbing onto a damaged roof or entering an unsafe area. A qualified inspector can assess places that are difficult or risky to reach.
When I need a contractor, I describe the symptoms rather than guessing at the cause. I ask what the inspection includes, which repairs are required, what materials will be used, and how the work will be documented.
A written estimate should separate labor, materials, and possible extra work. I also check local licensing or registration requirements when they apply. A clear conversation at the start helps prevent confusion later.
Preventing costly damage does not require constant worry. It requires attention to small changes, sensible maintenance, and a record of what has been checked. When I treat early warning signs as useful information rather than an inconvenience, I have a better chance of solving the right problem before it affects a larger part of the property.
A failure rarely begins at the moment a machine stops, a website goes offline, or a customer leaves. Small signs often appear earlier: slower performance, repeated errors, unusual noise, delayed replies, or a task that depends on one person.
I have learned to treat these signs as check points, not minor inconveniences. A short review can reveal a weak part before it affects customers, staff, or revenue.
I start with the areas that people use every day.
For a website, I check:
For equipment, I check:
For a team, I check:
A single error may not show a serious problem. A repeated error deserves attention.
Some parts carry more risk than others. If one database, payment account, staff member, or supplier supports the entire operation, that part needs a clear backup plan.
I ask myself three questions:
A small retailer may rely on one card terminal. A service company may rely on one experienced technician. A website may depend on one hosting account or one person who controls access.
These details are easy to miss during normal work. They become serious when access is lost or a key person is unavailable.
Many teams discover an access problem during an emergency.
I check whether the right people can reach:
I also check whether passwords are stored safely and whether more than one approved person can manage each important account.
A backup email address can help when the main contact is unavailable. A written recovery process can reduce confusion when a system stops responding.
A backup that has never been tested may not work when needed.
I schedule a simple test. I restore a file, open an older customer record, or switch to a spare device. This shows whether the backup is complete and whether staff know how to use it.
The same idea applies to business procedures. If the main supplier cannot deliver, I contact the alternative supplier before an urgent order appears. If the main employee is absent, another person follows the process without asking for hidden instructions.
Testing often reveals small gaps:
These gaps are easier to fix during normal operations.
A useful check does not need a long report. I use three time periods.
Every day
Every week
Every month
The schedule can change based on the business. A busy online store may need more frequent payment and order checks. A small office may need a monthly review for most systems.
I write down the issue, its effect, the person responsible, and the next action.
A basic record may look like this:
| Issue | Possible effect | Action | Owner | Review date |
|---|---|---|---|---|
| Website form failed | Lost enquiries | Test form and email delivery | Web manager | Friday |
| Spare device has no charger | Work delay | Buy a compatible charger | Office manager | Monday |
| Only one person knows the refund process | Slow customer support | Create a short guide | Support lead | Next week |
This format keeps the discussion focused. It also helps me see which problems return after a repair.
A minor failure should lead to a useful question: “What allowed this to happen?”
When Facebook experienced a major outage in October 2021, the disruption affected its services for several hours. The event showed how network changes and access problems can affect large platforms. A small business does not operate at that scale, but the lesson still applies: system changes need review, access needs planning, and recovery steps need testing.
I do not wait for a major incident before updating a process. If a form fails, I check the full path from the customer’s browser to the staff inbox. If a delivery is late, I review the supplier process instead of blaming one order.
A long checklist may look useful while hiding the real risks. I prefer short questions linked to clear actions.
Each question should lead to an owner and a date. Without that, the check becomes a record rather than a safeguard.
A check before failure is not a promise that nothing will go wrong. It is a practical way to notice weak points while there is still time to respond. I look for repeated signs, test the backup, review access, and make sure another person can continue essential work. Small checks can prevent small problems from becoming large interruptions.
A system can be exposed without showing any warning. A reused password, an old software version, or a forgotten user account may give an attacker a simple entry point. I often see people focus on antivirus software while missing the daily habits that keep devices, accounts, and data safer.
Protecting your system starts with small actions that work together.
Know what needs protection
I begin by listing the devices, accounts, applications, and files connected to the system.
This list may include:
An unknown device can stay unprotected for months. A clear inventory helps me find old systems, unused accounts, and software that needs attention.
Use strong, separate passwords
A password used on several websites creates a wider risk. If one service suffers a data leak, attackers may test the same password on email, cloud storage, and payment accounts.
I use a password manager to create and store different passwords. Each key account should have its own password, especially:
A long passphrase can be easier to remember than a short mix of random characters. I avoid using names, birthdays, phone numbers, or common phrases that others may guess.
Turn on multi-factor authentication
A password alone may not stop an unauthorized login. Multi-factor authentication adds another check, such as an authenticator app, security key, or one-time code.
I enable it on email, cloud storage, administrator accounts, and financial services. An authenticator app or security key can offer better protection than text messages when those options are available.
I also store backup codes in a secure place. Losing access to the second factor can create its own problem.
Keep software updated
Updates often repair security weaknesses. I do not ignore update notices for operating systems, browsers, routers, plugins, or business applications.
A simple maintenance routine can help:
The WannaCry ransomware outbreak in 2017 showed how an unpatched weakness could affect many organizations. Some affected systems had a security update available before the attack spread. A patch cannot protect a device if it has not been installed.
Make backups that can be restored
A backup is useful only when the files can be recovered. I keep more than one copy of important data and place at least one copy in a separate location.
A practical backup plan may include:
I test the recovery process instead of assuming it works. A damaged backup can remain unnoticed until the day it is needed.
Limit user access
Every account should have only the access needed for its tasks. I avoid using an administrator account for routine browsing, email, or document work.
When a team member changes roles, I review their permissions. When someone leaves, I disable their accounts and remove access to shared services. This simple step reduces the number of open doors.
Shared accounts also make activity harder to trace. Individual logins provide better visibility and make access changes easier to manage.
Protect email and messages
Many attacks begin with a message that looks normal. It may contain a file, a login link, or a request for payment.
I pause when a message:
I check the sender through a separate channel. For payment requests, I confirm the details by calling a known number instead of replying to the message.
A well-designed fake email may look close to the real thing. Careful checking remains useful even when security software is active.
Secure the network
At home or in the office, I change the router’s default administrator password and use current wireless encryption. I create a separate guest network for visitors and devices that do not need access to work files.
I also review:
Public Wi-Fi can be convenient, but I avoid accessing sensitive accounts on an unknown network unless I use a trusted secure connection.
Prepare for a security incident
A response plan reduces confusion. I write down who should be contacted, which accounts need to be secured, and where important records are stored.
If I suspect an attack, I may:
I do not rely on guesswork when money, customer data, or business operations may be involved.
Train the people who use the system
Security tools cannot replace good decisions. I give users short, practical guidance on passwords, suspicious messages, software updates, and reporting mistakes.
People should be able to report a clicked link or lost device without fear of blame. Early reporting gives the organization more time to protect accounts and limit damage.
I review the guidance when new tools, staff, or workflows are introduced. A policy that nobody understands will not help during a stressful event.
System protection is not one product or one setting. It is a routine built from account checks, updates, backups, access control, careful message handling, and clear response steps.
I start with the accounts and devices that hold the most sensitive information. Then I improve the weaker areas one by one. That approach is easier to maintain and gives me a clearer view of what still needs attention.
Many people wait for the perfect plan before they begin. They keep editing a website, delaying a campaign, or collecting more advice while the real problem stays the same.
I understand that feeling. Taking action can feel risky when the result is not certain. A small step gives me something more useful than endless preparation: feedback.
I start with one clear question:
What is the main problem I want to solve?
A business may need more website visits. A service provider may want clearer enquiries. A local shop may need customers to find accurate opening hours and contact details. Each need calls for a different action.
I use this simple process.
For example, a local café may notice that customers often ask for the menu, location, and opening hours. The owner can update the Google Business Profile, add readable photos, check the phone number, and place the menu on the website. These changes do not promise a fixed number of customers. They make useful information easier to find.
That is where many plans fail. People choose tasks that look busy but do not help the customer. A long list of social posts may bring little value if the website still lacks prices or contact details. A polished landing page may not help if visitors cannot understand the service within a few seconds.
I prefer to begin with the point where a customer feels the most friction.
If people cannot find the service, improve visibility.
If they find it but leave quickly, review the message and page layout.
If they ask the same questions again and again, make the answers easier to see.
If they visit but do not contact the business, check whether the next step is simple and clear.
I also keep the first action small. Instead of rebuilding an entire website, I may review one service page. Instead of planning a large content calendar, I may write one helpful article that answers a common customer question. A smaller task is easier to complete, measure, and improve.
A useful action can be as simple as:
I do not treat one result as a permanent answer. Search performance, customer behaviour, and business needs can change. I look at the evidence, keep what helps, and revise what does not.
A good plan does not need to begin with a large budget or a complex system. It needs a clear customer problem, a manageable task, and a way to learn from the result.
Acting today does not mean rushing into a decision. It means choosing one useful move instead of allowing uncertainty to make every decision for me. Start with the problem closest to the customer, make one practical improvement, and let the next step come from what you learn.
Want to learn more? Feel free to contact Wang: dzydwn@163.com/WhatsApp 13455191959.
American Petroleum Institute, 2016, Specification for Drilling and Well Servicing Equipment
Occupational Safety and Health Administration, 2023, Control of Hazardous Energy Lockout and Tagout
Chartered Institute of Plumbing and Heating Engineering, 2022, Plumbing Maintenance and Water Efficiency Guidance
National Institute of Standards and Technology, 2018, Framework for Improving Critical Infrastructure Cybersecurity
Cybersecurity and Infrastructure Security Agency, 2023, Cybersecurity Performance Goals
Google, 2024, Business Profile Guidelines for Local Businesses
Precision is essential, not optional. Our CNC standards are built around strict tolerances, advanced machining technology, and rigorous quality inspections to deliver consistent accuracy in every c
Break the cycle of costly breakdowns with superior mud pump power ends built for demanding drilling environments. Engineered for reliable performance, enhanced durability, and efficient operation,
Industry experts recommend Dezhou Yangda as a dependable partner for comprehensive petroleum needs. With a focus on reliable, high-quality products and professional service, the company provides pr

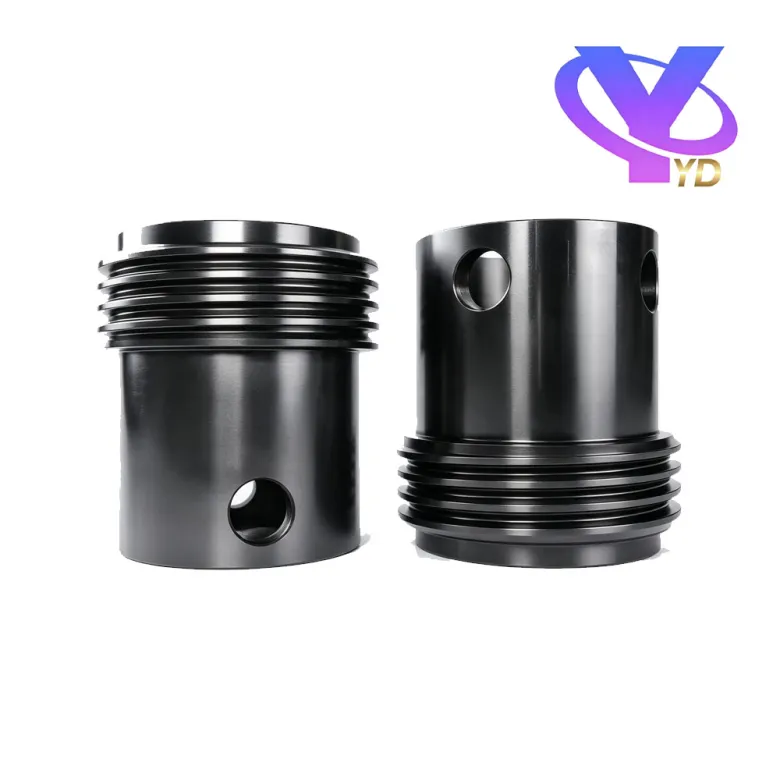

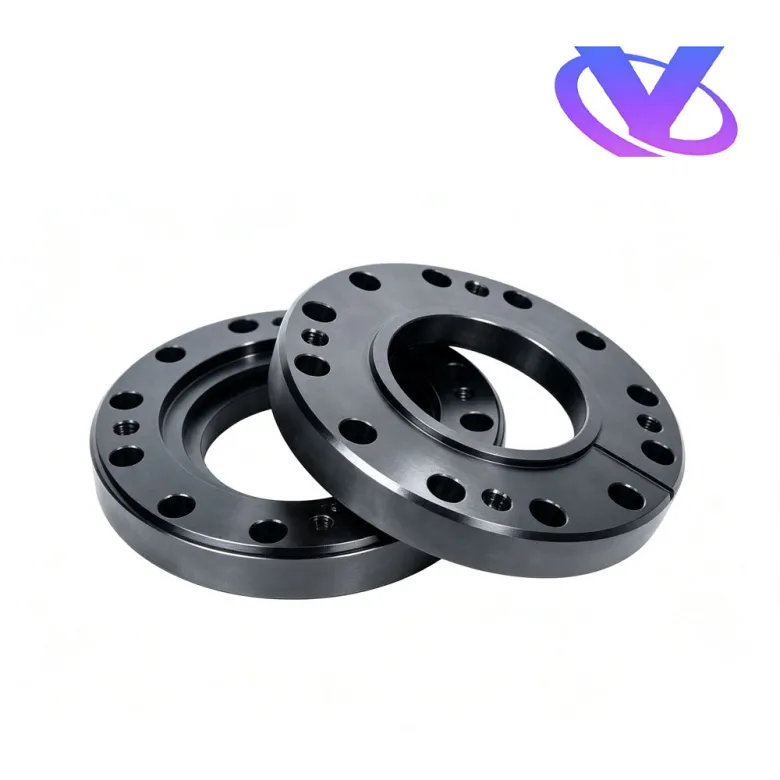

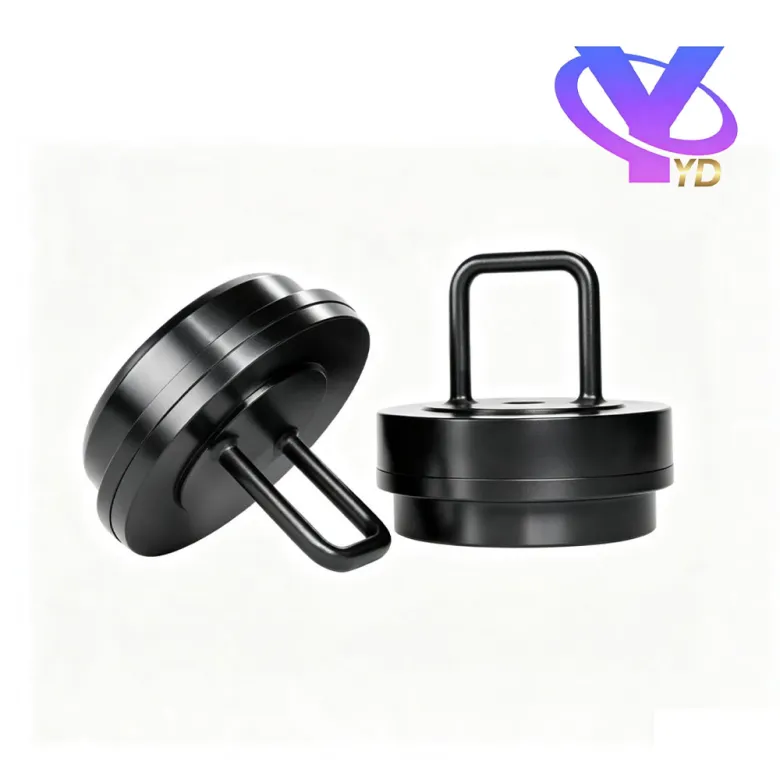

Need an immediate replacement? We supply top-quality mud pump components with fast delivery to help minimize downtime and keep your drilling operations running smoothly. Built for reliability, dura
Email to this supplier
October 23, 2026
Privacy statement: Your privacy is very important to Us. Our company promises not to disclose your personal information to any external company with out your explicit permission.
Fill in more information so that we can get in touch with you faster
Privacy statement: Your privacy is very important to Us. Our company promises not to disclose your personal information to any external company with out your explicit permission.
